Expert Ⅱ 355 pulsed UV solid state laser (air cooled)

Power: 0.5W-2.0W Pulse width: <25ns@100KHz Beam quality: ㎡<1.2 Spot ovality: >90%

Consulting products
  • Product Description
  • Parameter
  • Dimensional Drawing
  • Application Field
    • Commodity name: Expert Ⅱ 355 pulsed UV solid state laser (air cooled)
    • Commodity ID: 1041773083024515072

    Power: 0.5W-2.0W Pulse width: <25ns@100KHz Beam quality: ㎡<1.2 Spot ovality: >90%

    The Expert III355 UV series of semiconductor pump pulsed solid-state lasers include models from 0.5W to 2.0W. Has a short pulse width (<25ns@100K), superior beam quality (㎡ < 1.2) and perfect spot characteristics (spot ovality > 90%).


    Main features:

    1. The laser wavelength is 354.7nm, and the repetition frequency coverage is wide (single pulse to 200kHz).
    2. Superior beam quality (㎡ < 1.2) is strictly guaranteed in all frequency ranges.
    3. Online refresh harmonic control technology, long-term power stability.
    4. Unique Q-switching control technology, suitable for various laser application control needs.
    5. Full digital intelligent power control technology, which can control the laser externally via RS232.
    6. Industrialized product process production control technology, product quality is stable and reliable.
  • Product Category Pulse, UV, all solid state solid laser
      Parameter Index Unit Description
    Laser wavelength 354.7 nm
    Average Output Power 0.5-1.5 W @100kHz
    Pulse Width <25 ns @100kHz
    Pulse Repetition Rate 60-200 kHz
    Spatial Mode TEMoo
    Beam Quality (㎡) <1.2
    Beam Diameter 1.0+/-0.1 mm Measured at window
    Beam Full Divergence Angle <1.2 mrad
    Beam Circularity >0.9
    Pulse-to-Pulse Stability <3 % RMS/@30kHz
    Average Power Stability <5 % RMS/8hr
    Beam-Pointing Drift <30 μrad/℃
    Polarization Ratio >100:1
    Polarization Orientation Horizontal
    Operating Temp. & RH 10 to 35
    <80    		 ℃
    %
    Storage Temp. & RH -20 to 65
    <90    		 ℃
    %
    Electricity Requirement
    Power Consumption    		 100-240
    50/60
    <300    		 VAC
    Hz
    W    		 Single phase
    Warranty 10,000
    or 12    		 Hr
    months    		 Whichever comes
    first.



    1. Laser power and other characteristics can be optimized in different repetition frequency ranges. The temperature referred to is the ambient temperature.
    2. The temperature referred to is the ambient temperature.

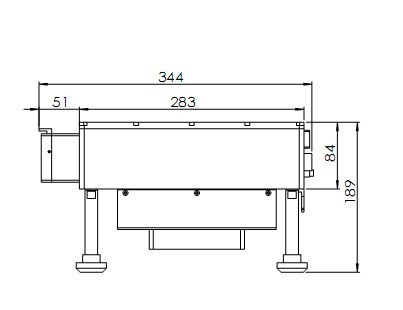

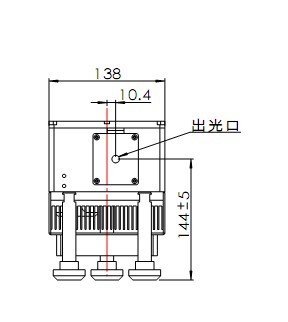

  • 激光头尺寸图：

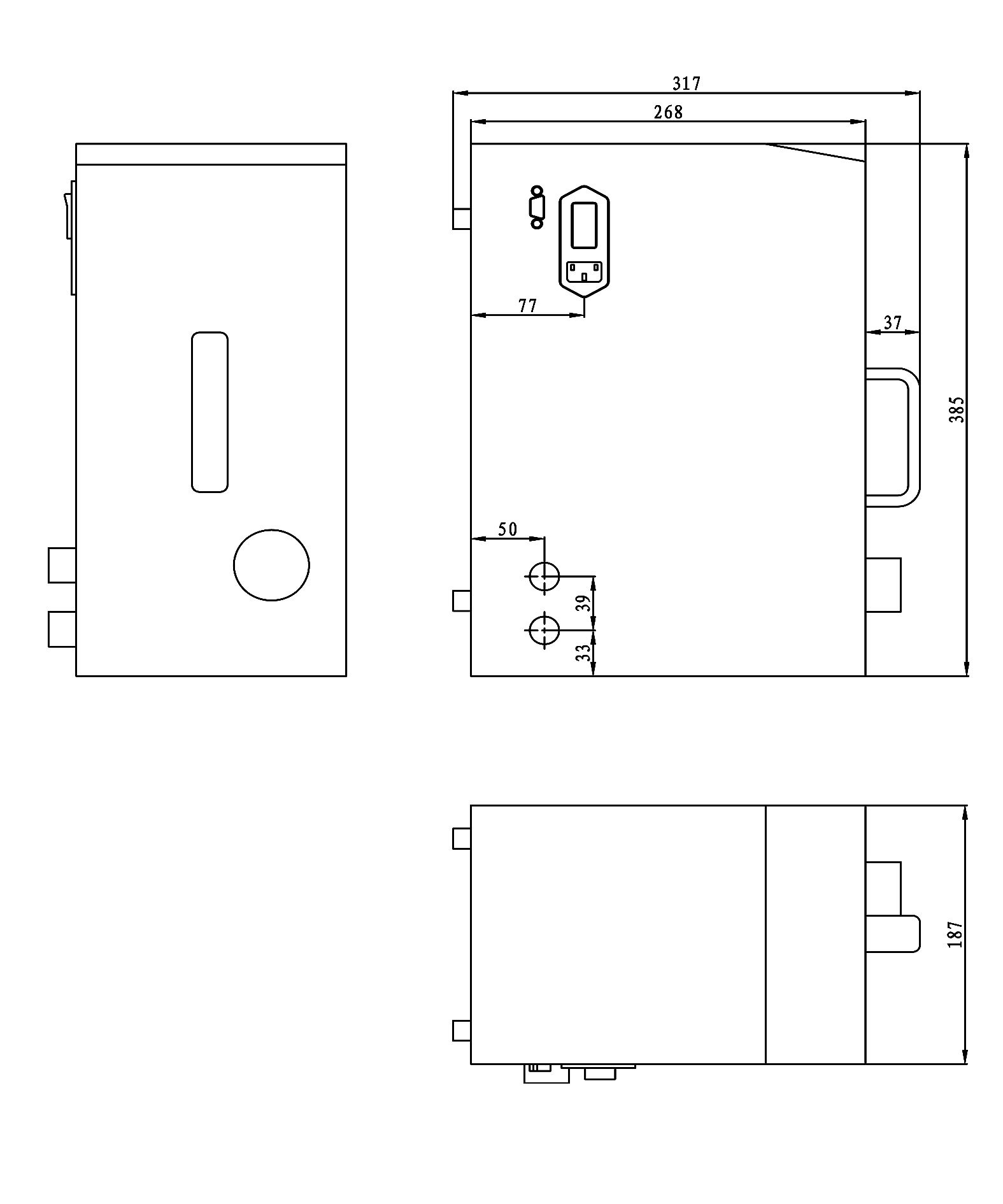

    电源箱尺寸图：



    冷水箱尺寸图：
