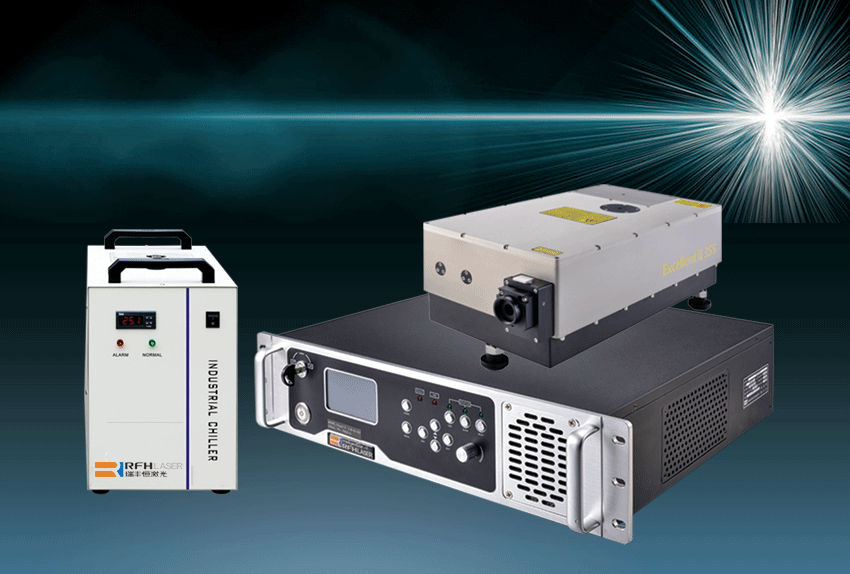

Excellent Ⅱ 355 series 8W-10W UV solid state laser
Excellent II 355 series water cooled UV laser covers 8.0W-10.0W in laser power with short pulse width (<16ns@40K) ,superior beam quality (M²<1.2) and perfect laser spot quality (beam circularity >90%). It is particularly suitable for PE/PCB/FPC cutting, glass & sapphire cutting, drilling, scribing and cutting used in high precision micromaching areas.
- Product Description

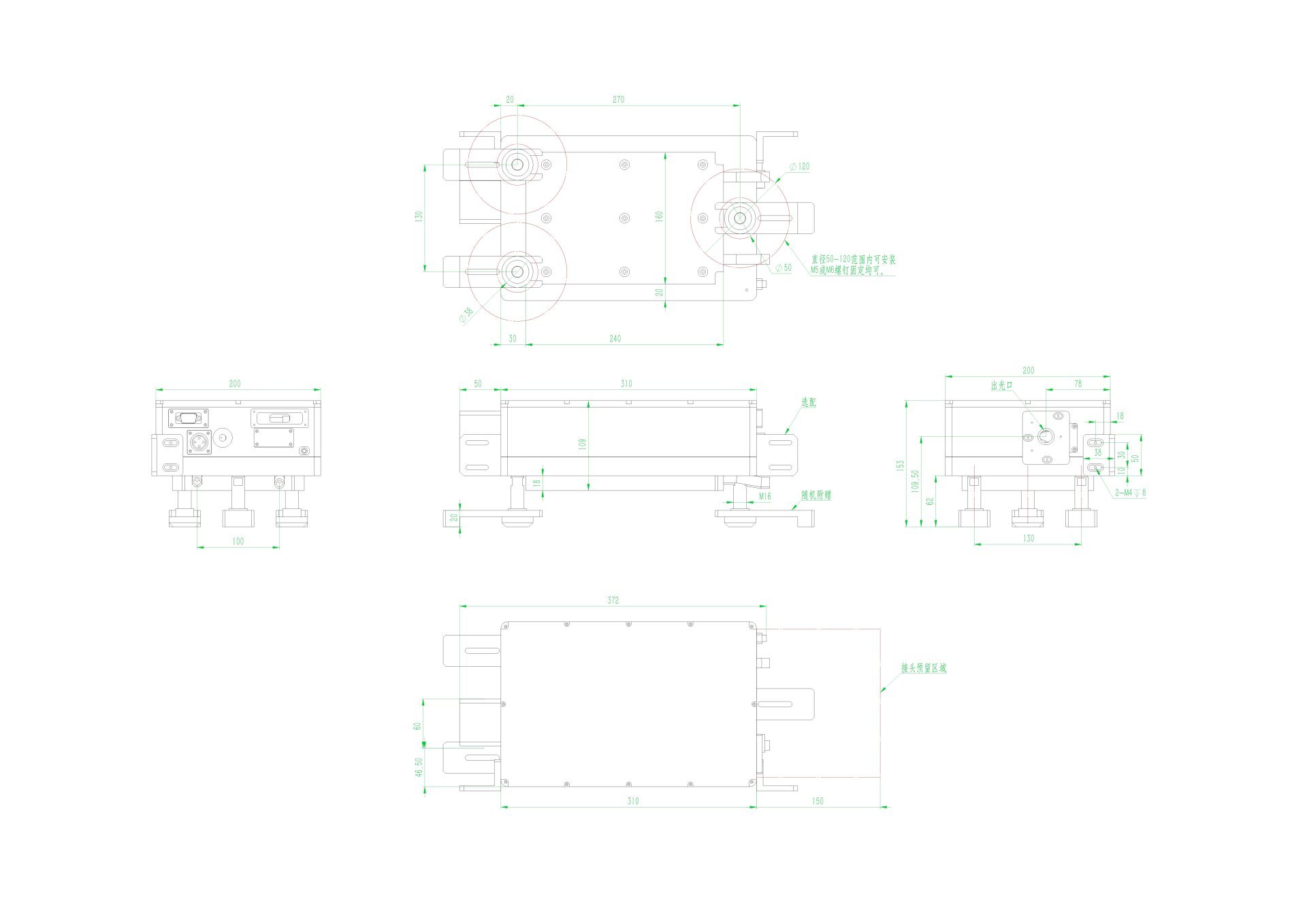

- Dimensional Drawing
- Application Field
Excellent II 355 series water cooled UV laser covers 8.0W-10.0W in laser power with short pulse width (<16ns@40K) ,superior beam quality (M²<1.2) and perfect laser spot quality (beam circularity >90%). It is particularly suitable for PE/PCB/FPC cutting, glass & sapphire cutting, drilling, scribing and cutting used in high precision micromaching areas.Excellent Ⅱ 355 series uv laser characteristics：1. Laser wavelength at 354.7nm, repetition rates cover a wide range(single pulse to 200kHz）; laser power ranging from 8.0w-10.0w;2. Exceptional beam quality (M²<1.2) ，absolutely assured in all repetition rates; relatively short pulse width <16ns@40k with little heat transfer to surrounding material; perfect beam spot quality(Beam Circularity>90%)3. Unique Q-switching technology, adapts a variety of control requirements of laser applications;Online refreshment for harmonic coupling technology;Excellent long term power stability4. Digital control technology for the driver, enables user to command through RS2325. This laser adopts one - style design with compact and reasonable structure, easy installation.6. Industrial production process control technology,provides quality stable products.RFH - The leading industrial solid-state laser manufacturerFor over 13 years with excellent long term stability and exceptional good beam qualityProduction in dust-free plant & rigorous quality control systemFrom purchasing, pre-production quality check, assembling, finished product testing, warehouse-in inspection, pre-delivery testing to after-sales service, each step is under control to make sure product quality and consistency in both machine parameters and actual running parameters. This is what makes RFH laser lasts longer than its peers.Top professional team, independent R&D in laser oriented power supply control systemThere is a one-to-one correspondence between power supply and laser. The stability of power supply control system determines if the laser can maximize its performance during operation. RFH Laser has independent R&D in power supply technique which enables timely update and improvement of power supply control system module based on the laser’s need. 12-year experience in R&D and a top professional team make RFH laser a reliable and stable laser system.Core components of oversea brands with guaranteed qualityPumping, Q-switching and other core components adopt oversea brands. Work with top brand component suppliers of home and abroad. Each component is guaranteed with its quality from the beginning of materials purchasing. This is why users can trust RFH laser.Power supply+laser head+cooling system sold in a groupBeing client-oriented, RFH offers proposal of selling the whole laser system in a group so that the laser system can maximize its performance while maintaining its stability.Full-digital display, supporting communication with computer, capable of laser’s remote controlEach laser developed and produced by RFH can always remain high quality in industrial and extreme conditions of scientific research. With stable beam quality, high efficiency, best cost performance and high reliability, RFH has earned good reputation in different industries at home and abroad. After 12-year development, RFH has become a reputed brand in nanosecond laser industry.
- Commodity name: Excellent Ⅱ 355 series 8W-10W UV solid state laser
- Commodity ID: 1041772518894821376
