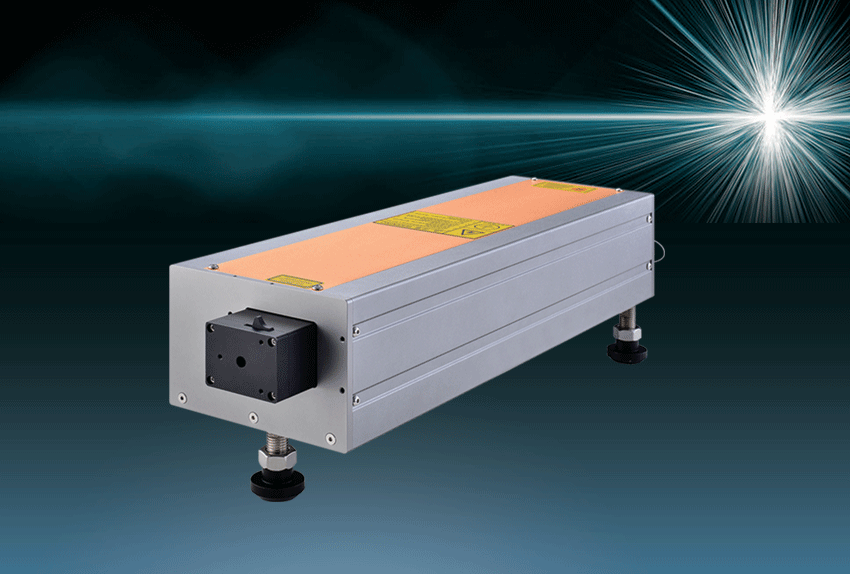

K-6 series 4W-6W Integrated UV Laser

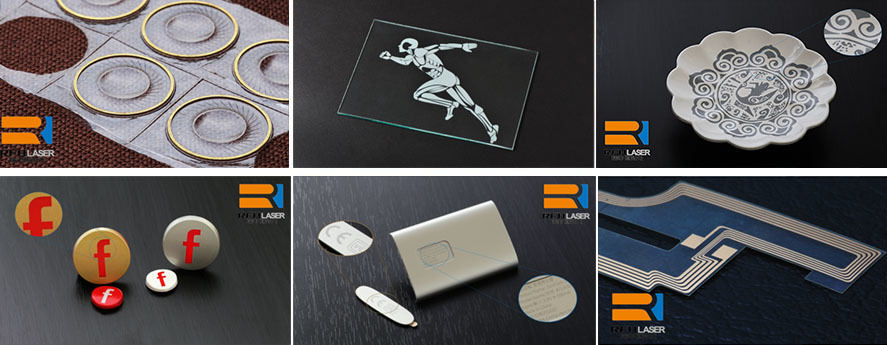

K-6 series UV DPSS laser, developed and produced by RFH, covers 4W-6W in laser power with short pulse width (<20ns@30K) ,superior beam quality (M²<1.2) and perfect laser spot quality (beam circularity >90%). K-6 series laser is ideal for high-end ultra-precise processing as well as marking in mobile phone shell , package of cosmetics, food, medicine and other high polymer materials, PCB, LCD, glassware surface, metal’s cladding material, plastic keypad, electronic component, gift, communication device, construction material and other areas.


Consulting products
  • Product Description
  • Parameter
  • Dimensional Drawing
  • Application Field
    • Commodity name: K-6 series 4W-6W Integrated UV Laser
    • Commodity ID: 1041772746649722880

    K-6 series UV DPSS laser, developed and produced by RFH, covers 4W-6W in laser power with short pulse width (<20ns@30K) ,superior beam quality (M²<1.2) and perfect laser spot quality (beam circularity >90%). K-6 series laser is ideal for high-end ultra-precise processing as well as marking in mobile phone shell , package of cosmetics, food, medicine and other high polymer materials, PCB, LCD, glassware surface, metal’s cladding material, plastic keypad, electronic component, gift, communication device, construction material and other areas.

    K-6 series UV DPSS laser, developed and produced by RFH, covers 4W-6W in laser power with short pulse width (<20ns@30K) ,superior beam quality (M²<1.2) and perfect laser spot quality (beam circularity >90%). K-6 series laser is ideal for high-end ultra-precise processing as well as marking in mobile phone shell , package of cosmetics, food, medicine and other high polymer materials, PCB, LCD, glassware surface, metal’s cladding material, plastic keypad, electronic component, gift, communication device, construction material and other areas.
    K-6 series uv laser characteristics:

    1. Laser wavelength at 354.7nm,  repetition rates cover a wide range(single pulse to 200kHz); laser power ranging from 4W-6W;

    2. Exceptional beam quality (M²<1.2) ,absolutely assured in all repetition rates; relatively short pulse width <20ns@30 with little heat transfer to surrounding material; perfect beam spot quality(Beam Circularity>90%)

    3. Unique Q-switching technology, adapts a variety of control requirements of laser applications;
    Online refreshment for harmonic coupling technology;Excellent long term power stability

    4. Digital control technology for the driver, enables user to command through RS232

    5. This laser adopts one - style design with compact and reasonable structure, easy installation.

    6. Industrial production process control technology,provides quality stable products.

     RFH - The leading industrial solid-state laser manufacturer

    For over 13 years with excellent long term stability and exceptional good beam quality

    Production in dust-free plant & rigorous quality control system
    From purchasing, pre-production quality check, assembling, finished product testing, warehouse-in inspection, pre-delivery testing to after-sales service, each step is under control to make sure product quality and consistency in both machine parameters and actual running parameters. This is what makes RFH laser lasts longer than its peers.

    Top professional team, independent R&D in laser oriented power supply control system
    There is a one-to-one correspondence between power supply and laser. The stability of power supply control system determines if the laser can maximize its performance during operation. RFH Laser has independent R&D in power supply technique which enables timely update and improvement of power supply control system module based on the laser’s need. 12-year experience in R&D and a top professional team make RFH laser a reliable and stable laser system.

    Core components of oversea brands with guaranteed quality
    Pumping, Q-switching and other core components adopt oversea brands. Work with top brand component suppliers of home and abroad. Each component is guaranteed with its quality from the beginning of materials purchasing. This is why users can trust RFH laser.

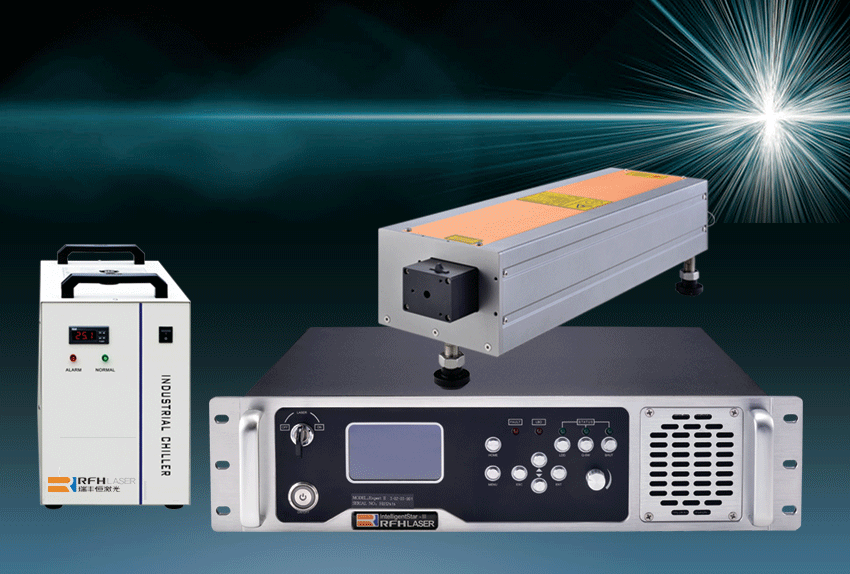

    Power supply+laser head+cooling system sold in a group
    Being client-oriented, RFH offers proposal of selling the whole laser system in a group so that the laser system can maximize its performance while maintaining its stability.

    Full-digital display, supporting communication with computer, capable of laser’s remote control


    Each laser developed and produced by RFH can always remain high quality in industrial and extreme conditions of scientific research. With stable beam quality, high efficiency, best cost performance and high reliability, RFH has earned good reputation in different industries at home and abroad. After 12-year development, RFH has become a reputed brand in nanosecond laser industry.

  •
                                       Model  K-6 uv laser
      Parameter Index Unit Description
    Laser wavelength 355 nm
    Average Output Power 4/6/8 W @30kHz
    Pulse Width <20 ns @30kHz
    Pulse Repetition Rate 10-200 kHz
    Spatial Mode TEMoo
    M2 <1.2
    Beam Diameter 0.8±-0.1 mm measured at window
    Beam Full Divergence Angle <1.2 mrad
    Beam Circularity >90 %
    Pulse-to-Pulse Stability <3 % RMS
    Average Power Stability <5 % RMS/8hr
    Beam-Pointing Drift <25 μrad/℃
    Polarization Ratio >100:1
    Polarization Orientation Horizontal
    Operating Temp. & RH 10 to 35
    <90

    %

    Storage Temp. & RH -20 to 65
    <90

    %

    Electricity Requirement 100-240 VAC
    Power Consumption 50/60
    <500
    Hz
    W
    Single phase
    Warranty 18 Months



    1.激光功率和其它特性可优化在不同的重复频率范围.
    2.所指温度为环境温度.

  •

  •
