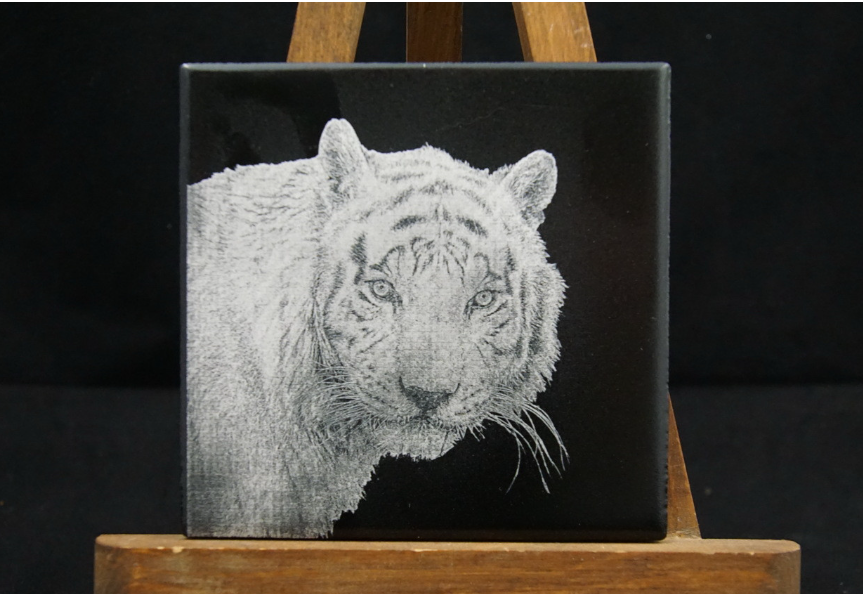

RFH 10 watt nanosecond UV Laser engraved photos on ceramic tiles without paint
10 watt nanosecond UV Laser engraved photos on ceramic tiles without paint. To meet the market demand, RFH newly developed S9 series solid state pulsed UV laser in 2020. Comparing with its kinds, S9 series solid state pulsed UV laser features more compact and delicate design with more stable laser output.Its compact design suggests no necessity in building big light path, which reduces space and cost to a great extent and makes it easy to be installed into flying laser marking machines. In addition, S9 series UV laser has more stable laser cavity of better extensibility, which means the same laser cavity can be made into lasers of different powers whose stability are greatly improved.
Consulting products
- Product Description
- Parameter
- Dimensional Drawing
- Application Field
-
- Commodity name: RFH 10 watt nanosecond UV Laser engraved photos on ceramic tiles without paint
- Commodity ID: 101772479862628352
10 watt nanosecond UV Laser engraved photos on ceramic tiles without paint. To meet the market demand, RFH newly developed S9 series solid state pulsed UV laser in 2020. Comparing with its kinds, S9 series solid state pulsed UV laser features more compact and delicate design with more stable laser output.Its compact design suggests no necessity in building big light path, which reduces space and cost to a great extent and makes it easy to be installed into flying laser marking machines. In addition, S9 series UV laser has more stable laser cavity of better extensibility, which means the same laser cavity can be made into lasers of different powers whose stability are greatly improved.
10 watt nanosecond UV Laser engraved photos on ceramic tiles without paint
To meet the market demand, RFH newly developed S9 series solid state pulsed UV laser in 2020. Comparing with its kinds, S9 series solid state pulsed UV laser features more compact and delicate design with more stable laser output.Its compact design suggests no necessity in building big light path, which reduces space and cost to a great extent and makes it easy to be installed into flying laser marking machines. In addition, S9 series UV laser has more stable laser cavity of better extensibility, which means the same laser cavity can be made into lasers of different powers whose stability are greatly improved.
S9 series uv laser characteristics：1. Laser wavelength at 354.7nm, repetition rates cover a wide range(single pulse to 200kHz）; laser power ranging from 3.0w-5.0w;2. Exceptional beam quality (M²<1.2) ，absolutely assured in all repetition rates; relatively short pulse width <12ns@30 with little heat transfer to surrounding material; perfect beam spot quality(Beam Circularity>90%)3. Unique Q-switching technology, adapts a variety of control requirements of laser applications;Online refreshment for harmonic coupling technology;Excellent long term power stability4. Digital control technology for the driver, enables user to command through RS2325. This laser adopts one - style design with compact and reasonable structure, easy installation.6. Industrial production process control technology,provides quality stable products.RFH - The leading industrial solid-state laser manufacturerFor over 13 years with excellent long term stability and exceptional good beam qualityProduction in dust-free plant & rigorous quality control systemFrom purchasing, pre-production quality check, assembling, finished product testing, warehouse-in inspection, pre-delivery testing to after-sales service, each step is under control to make sure product quality and consistency in both machine parameters and actual running parameters. This is what makes RFH laser lasts longer than its peers.
Top professional team, independent R&D in laser oriented power supply control systemThere is a one-to-one correspondence between power supply and laser. The stability of power supply control system determines if the laser can maximize its performance during operation. RFH Laser has independent R&D in power supply technique which enables timely update and improvement of power supply control system module based on the laser’s need. 12-year experience in R&D and a top professional team make RFH laser a reliable and stable laser system.
Core components of oversea brands with guaranteed qualityPumping, Q-switching and other core components adopt oversea brands. Work with top brand component suppliers of home and abroad. Each component is guaranteed with its quality from the beginning of materials purchasing. This is why users can trust RFH laser.
Small size, cost saving, ease of installationComparing with its kind, RFH laser has smaller size, more stable laser cavity and better extensibility with space saving, which makes it easy to be installed into flying laser marking machine in order to save costs for users.
Power supply+laser head+cooling system sold in a groupBeing client-oriented, RFH offers proposal of selling the whole laser system in a group so that the laser system can maximize its performance while maintaining its stability.
Full-digital display, supporting communication with computer, capable of laser’s remote control
Each laser developed and produced by RFH can always remain high quality in industrial and extreme conditions of scientific research. With stable beam quality, high efficiency, best cost performance and high reliability, RFH has earned good reputation in different industries at home and abroad. After 12-year development, RFH has become a reputed brand in nanosecond laser industry.Key words:- 10 watt nanosecond UV Laser
- engraved photos on ceramic
-
Model S9 UV LASER Parameter Index Unit Description Laser wavelength 354.7 nm Average Output Power 3.0-5.0 W @30kHz Pulse Width <12 ns @30kHz Pulse Repetition Rate 10-200 kHz Spatial Mode TEMoo M2 <1.2 Beam Diameter 0.8±0.2 mm Measured at window Beam Full Divergence Angle <2 mrad Beam Circularity >90 % Pulse-to-Pulse Stability <2 % RMS/@30kHz Average Power Stability <5 % RMS/8hr Beam-Pointing Drift <30 μrad/℃ Polarization Ratio >100:1 Polarization Orientation Horizontal Operating Temp. & RH 10 to 35
<80℃
%Storage Temp. & RH -20 to 65
<90℃
%Electricity Requirement
Power Consumption
100-240
50/60
<500VAC
Hz
WSingle phase Warranty 18
months -
