Color Laser Engraving On Fabric Belt With RFH 3watt Uv Laser Marker

Release time：2021/09/15

uv laser

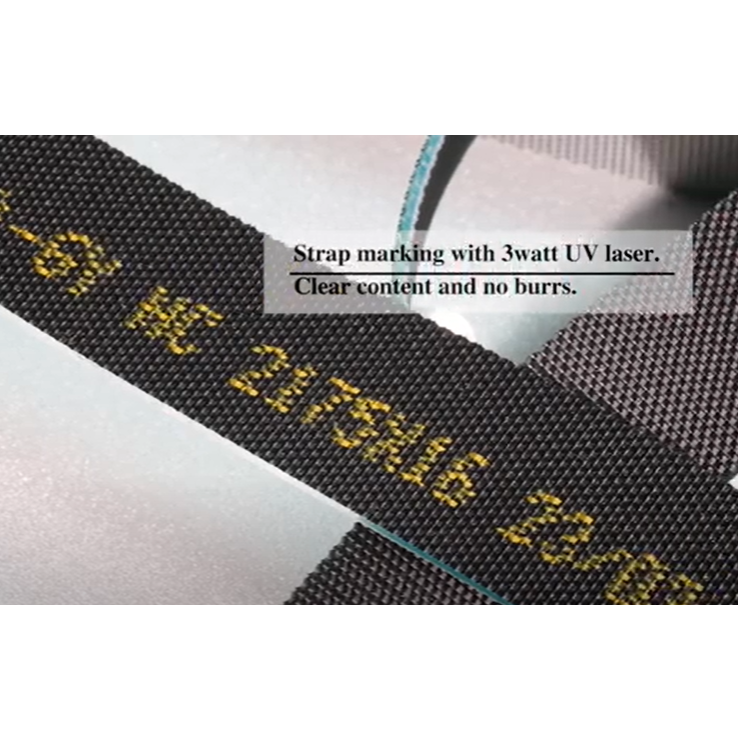

Color Laser Engraving on fabric belt with RFH 3watt uv laser marker

Comparing with its kinds, S9 series 3w  UV laser features with rugged sealed cavity, extremely compact size, simple and robust, high stability, high efficiency, high reliability and excellent laser beam quality.Its compact design suggests no necessity in building big light path, which greatly reduces space and cost and makes it easy to be installed into UV laser marking machines. In addition, S9 series cavity structure is more stability and more excellent scalability, which means the same laser cavity can be produces multi-power lasers , and the stability of different power ranges is greatly improved

  • Laser Wavelength:

    354.7nm

  • Average Output Power :

    3W-10W @30kHz

  • Pulse Width:

    <12ns @ 30kHz

  • Pulse Repetition Rate :

    10-200kHz

  • Beam Quality (㎡) :

    <1.2

  • Beam Diameter :

    0.8±0.2mm Measured at window

  • Beam Full Divergence Angle :

    <2mrad

  • Beam Circularity :

    >90%

  • Pulse-To-Pulse Stability :

    <2% RMS/@30kHz

  • Average Power Stability :

    <5% RMS/8hr

  • Beam-Pointing Drift :

    <30μrad/℃

  • Polarization Ratio :

    >100:1

  • Polarization Orientation :

    Horizontal

  • Operating Temp. & RH :

    10℃ to 30℃ | <80%

  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %

  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase

  • Power Consumption :

    <500W

  • Warranty :

    18months
