MBurn 355 (micro-etched) UV series solid state laser

Power: 1.5W-5W Pulse width: <6ns@40KHz Beam quality: ㎡<1.2 Spot ovality: >90%

Consulting products
  • Product Description
  • Parameter
  • Dimensional Drawing
  • Application Field
    • Commodity name: MBurn 355 (micro-etched) UV series solid state laser
    • Commodity ID: 1041772930578341888

    Power: 1.5W-5W Pulse width: <6ns@40KHz Beam quality: ㎡<1.2 Spot ovality: >90%

    MBurn355 UV series semiconductor pump pulsed solid-state lasers include models from 1.5 to 5W. It has a very short pulse width (<6ns@40K), excellent beam quality (㎡<1.2) and perfect spot characteristics (spot ovality >95%).


    Main features:

    1. Laser wavelength 354.7nm, wide repetition frequency coverage (single pulse to 200kHz)
    2. Very short pulse width (<6ns@40K), especially small heat affects the processing area.
    3. Superior beam quality (㎡<1.2) is strictly guaranteed in all frequency ranges.
    4. Online refresh harmonic control technology, long-term power stability.
    5. Unique Q-switching control technology, suitable for various laser application control needs.
    6. Full digital intelligent power control technology, which can control the laser externally via RS232.
    7. Industrialized product process production control technology, product quality is stable and reliable.
  • MBurn355 series
      Parameter index Unit Description
    Wavelength 354.7 nm
    Average Output Power 1.5-5.0 W @30kHz
    Pulse Width <6.0 ns @30kHz
    Pulse Repetition Rate 10-100 kHz
    Spatial Mode TEMoo
    Beam Quality (㎡) <1.2
    Beam Diameter 2.0+/-0.2 mm Measured at window
    Beam Full Divergence Angle <0.5 mrad
    Beam Circularity >0.90
    Pulse-to-Pulse Stability <3 % RMS/@40kHz
    Average Power Stability <5 % RMS/8hr
    Beam-Pointing Drift <30 µrad/℃
    Polarization Ratio >100:1
    Polarization Orientation Horizontal
    Operating Temp. & RH 10 to 30
    <80    		 ℃
    %
    Storage Temp. & RH -20 to 65
    <90    		 ℃
    %
    Electricity Requirement
    Power Consumption    		 100-240
    50/60
    <300    		 VAC
    Hz
    W    		 Single phase
    Warranty 12 months



    1. Laser power and other characteristics can be optimized in different repetition frequency ranges. The temperature referred to is the ambient temperature.
    2. The temperature referred to is the ambient temperature.

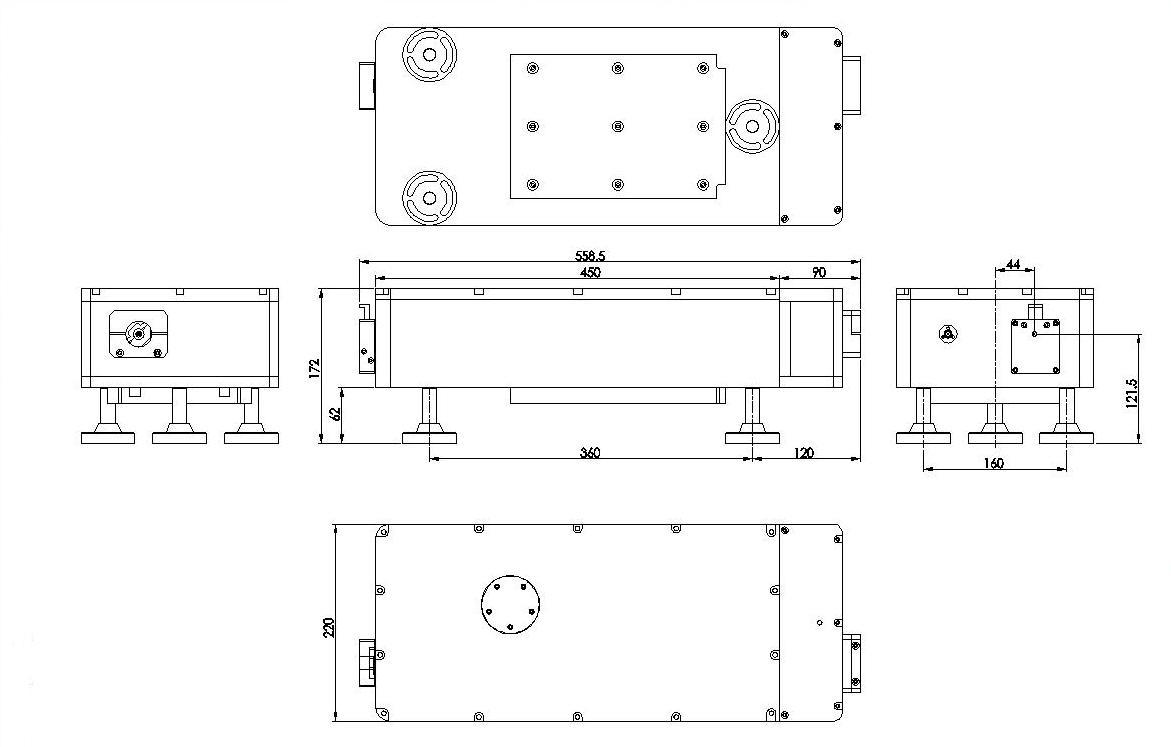

  • 激光头尺寸图：

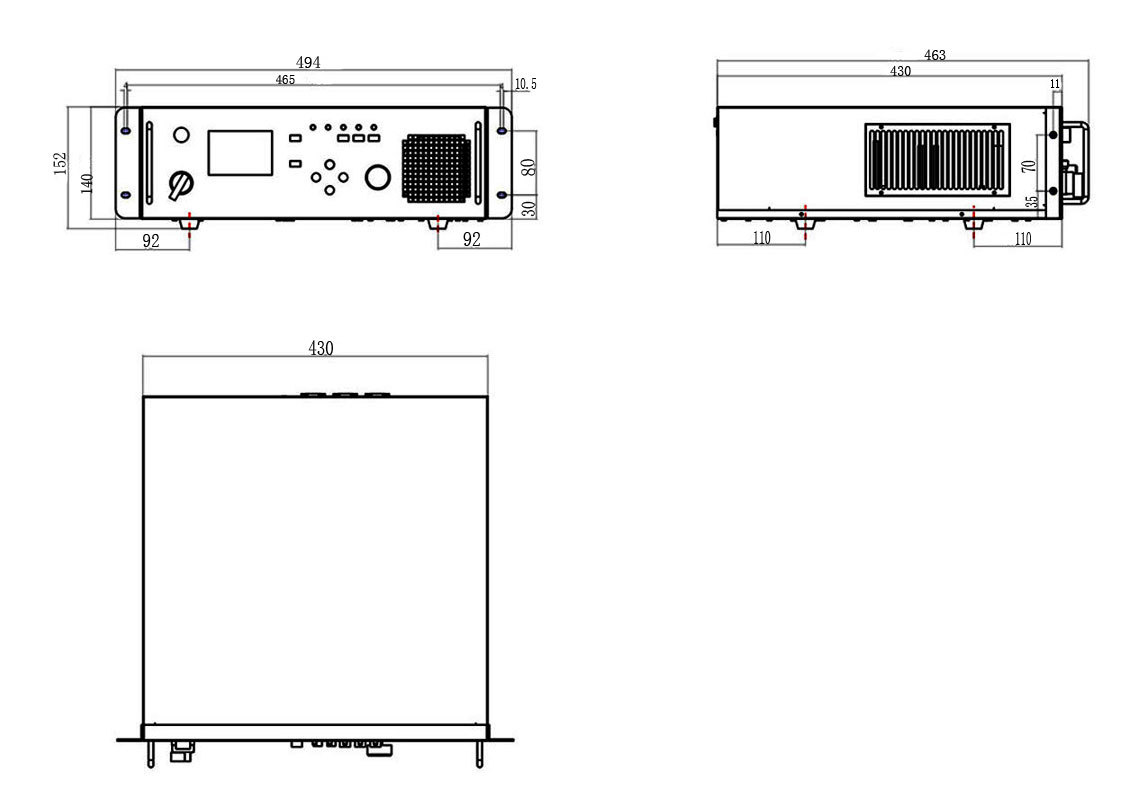

    电源箱尺寸图：

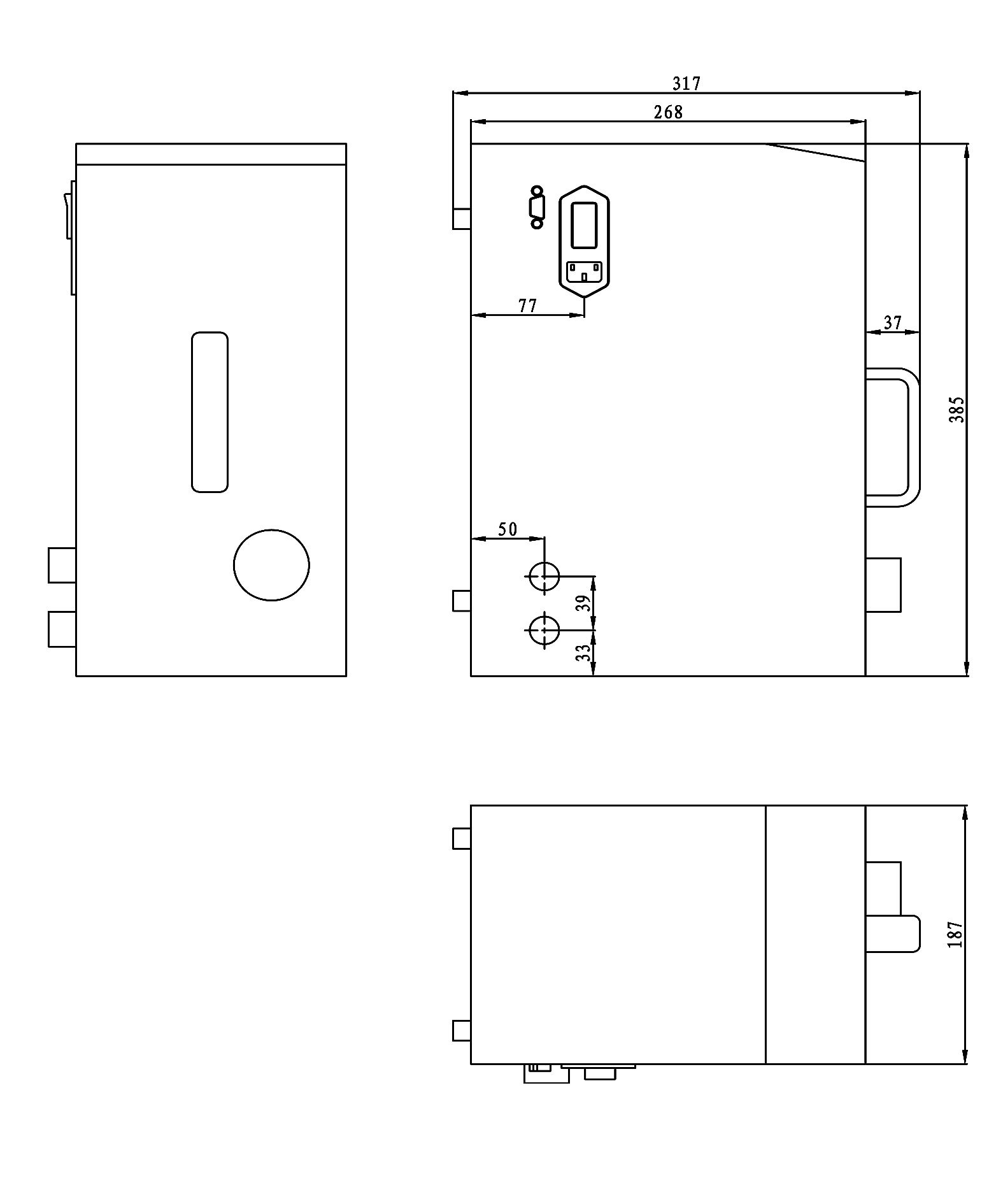

    冷水箱尺寸图：

  • ■ 晶圆切割、划线、钻孔

    ■ 触摸屏和液晶显示器的玻璃划线

    ■ 触摸屏刻图

    ■ 太阳能制造领域的薄膜划线
