Excellent Ⅱ 355 (excellent) UV series pulsed solid state laser
Power: 8W-10W Pulse width: <20ns@50KHz Beam quality: ㎡<1.2 Spot ovality: >90%
- Product Description

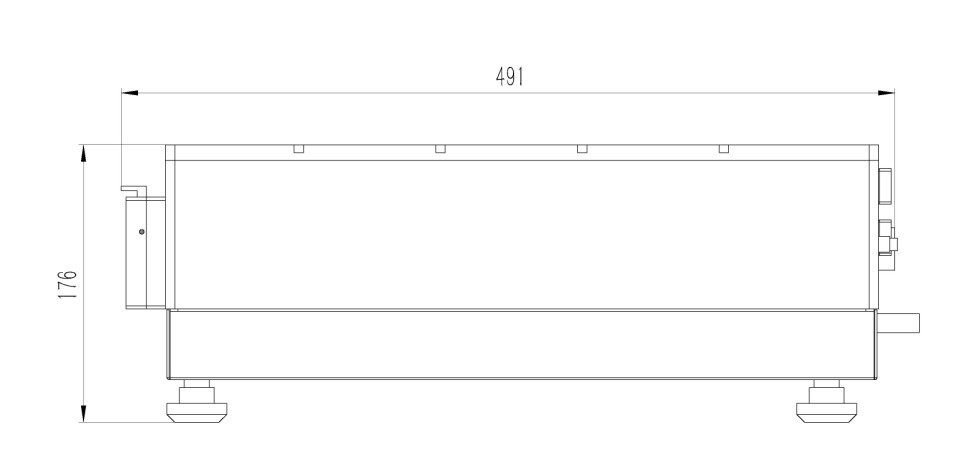

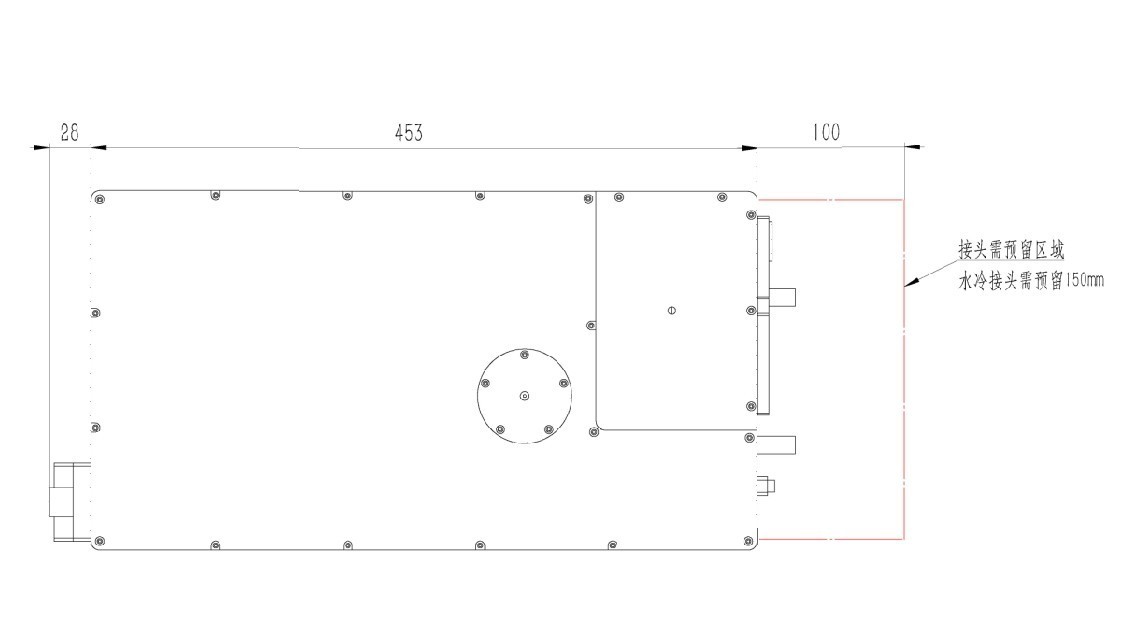

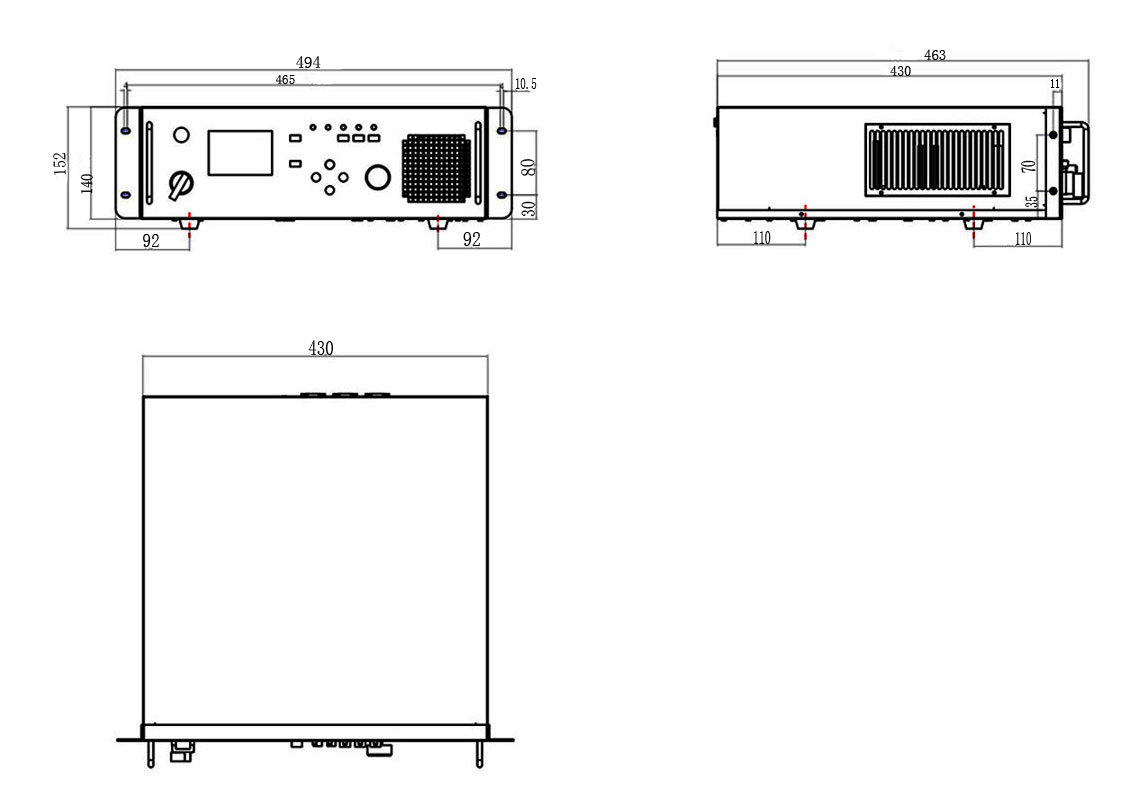

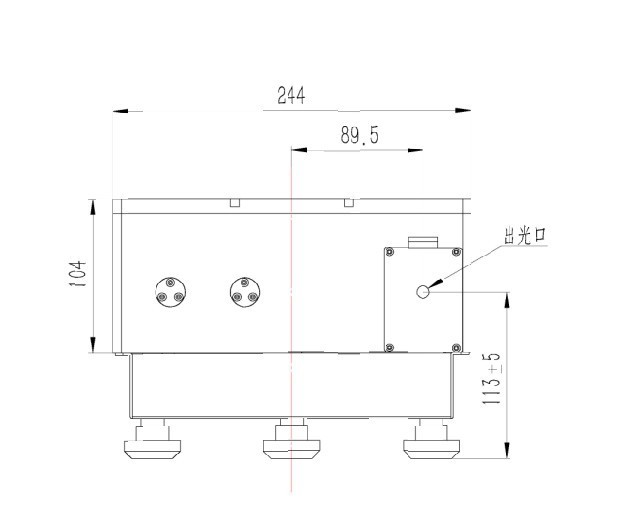

- Dimensional Drawing
- Application Field
The ExcellentII355 UV series of semiconductor pump pulsed solid-state lasers include models from 8.0W to 10.0W. Has a short pulse width (<20ns@50K), superior beam quality (㎡<1.2) and perfect spot characteristics (spot ovality >90%).Main features:1. The laser wavelength is 354.7nm, and the repetition frequency coverage is wide (single pulse to 200kHz).2. Short pulse width (<20ns@50K), relatively small heat affected processing area.3. Superior beam quality (㎡<1.2) is strictly guaranteed in all frequency ranges.4. Online refresh harmonic control technology, long-term power stability.5. Unique Q-switching control technology, suitable for various laser application control needs.6. Full digital intelligent power control technology, which can control the laser externally via RS232.7. Industrialized product process production control technology, product quality is stable and reliable.
- Commodity name: Excellent Ⅱ 355 (excellent) UV series pulsed solid state laser
- Commodity ID: 1041773005350199296
Excellent Ⅱ 355 Series Parameter index Unit Description Wavelength 354.7 nm Average Output Power 8.0~~10.0 W @50kHz Pulse Width <20 ns @50kHz Pulse Repetition Rate 10-120 kHz Spatial Mode TEMoo Beam Quality (㎡) <1.2 Beam Diameter 2.5+/-0.2 mm Measured at window Beam Full Divergence Angle <0.5 mrad Beam Circularity >0.9 Pulse-to-Pulse Stability <3 % RMS/@40kHz Average Power Stability <5 % RMS/8hr Beam-Pointing Drift <30 µrad/℃ Polarization Ratio >100:1 Polarization Orientation Horizontal Operating Temp. & RH 10 to 30
Storage Temp. & RH -20 to 65
Single phase Warranty 12 months
1. Laser power and other characteristics can be optimized in different repetition frequency ranges. The temperature referred to is the ambient temperature.
2. The temperature referred to is the ambient temperature.
■ FPC切割■ 微孔加工■ 晶圆划线■ 玻璃打标，划线■ 非金属表层去除■ 多种高分子材料的精细打标，划线及微加工■ 柔性电路板(FPC)打标，切割
